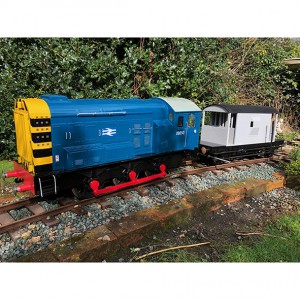

  • 7.25 08 b 2020

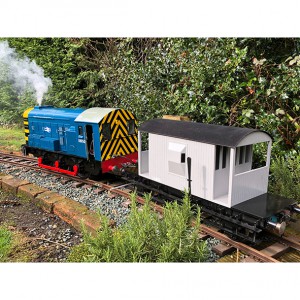

  • 7.25 08 a 2020

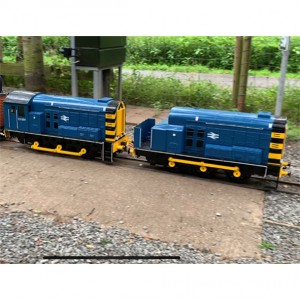

  • 7.25 08 on track

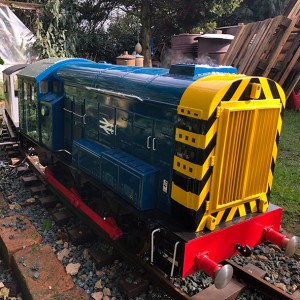

  • 7.25 08 c 2020

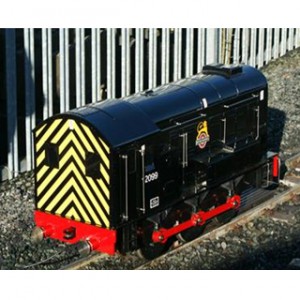

  • Class 08 10 Loco

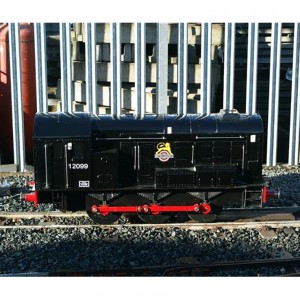

  • Class 08 10 Loco 2

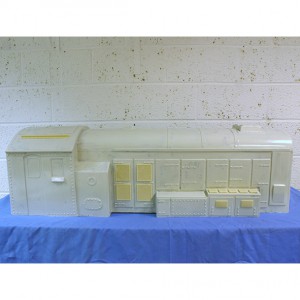

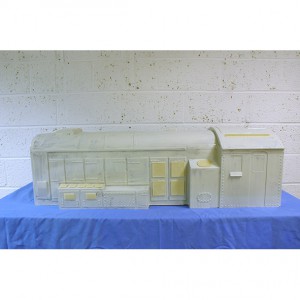

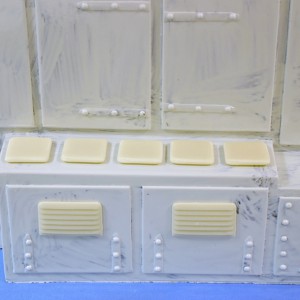

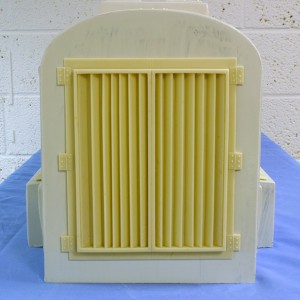

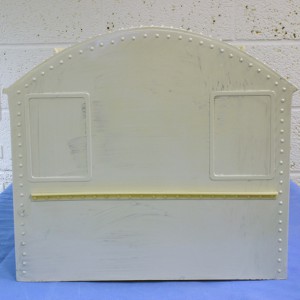

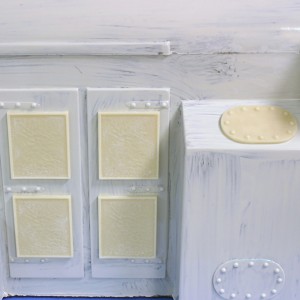

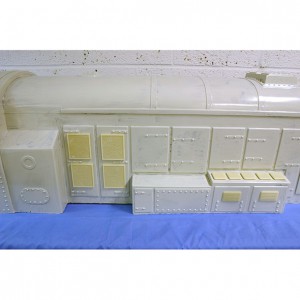

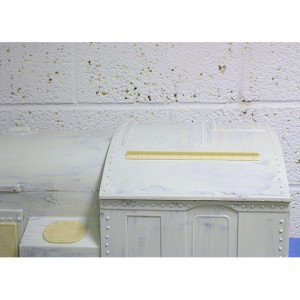

  • Castings loose fitted to show location
  • Castings loose fitted to show location
  • Castings loose fitted to show location
  • Castings loose fitted to show location
  • Castings loose fitted to show location
  • Castings loose fitted to show location
  • Castings loose fitted to show location
  • Castings loose fitted to show location

Available in kit form or ready to run with sound units

.

Also come in two versions – spoked wheels or solid wheels.

.

The ready to run version includes an M-Troniks sound unit.

.

Also available in a 5″ gauge – click HERE

.

The locomotive consists of:

Front and rear steps (included in the price)
Laser cut, fully sprung chassis and side rods
Front sprung coupling clevis coupling to rear
Sprung buffers
Steel axle boxes with ball races

Running number of your choice
Resin detailing parts for horn blocks, leaf springs and spring carriers as well as steps and pins
.

The ready to run locomotive includes a M-troniks controller and sound system
.

Basic livery painted as standard – please enquire about more complex liveries
.

The locomotive is driven by a 1.2kw traction motor the drive is achieved by chain and sprocket

PLEASE NOTE: In the pictures shown above, the castings are loose fitted to show location

.

.

Specifications:
Length (excluding buffers)1058mm or 41 3/4”
Width  348mm or 13 3/4”

Approximate Weight – 55lbs

.

Body Moulding:
Length – 1046mm
Length (cab) – 255mm
Width (cab) – 345mm

Length (nose) – 791mm

Width (nose, does not include sand boxes) – 240mm

Maximum Height – 320mm.

.

* These kits are only suitable for people with model engineering skills as certain parts require machining *

.

.

All locomotives are available in different liveries to those shown. Please ask!

We sell all of the components of our Locomotive kits separately so you can either build yourself from scratch or customise yourself as you go along

.

Listed below are many of the components we have available. Prices for each of the components can be found with the relevant locomotive in our price list, which can be found HERE

.

If you are looking for something specific that isn’t listed, or you can’t find the item on the price list, please give us a call!

.

Please contact us directly with any enquiries

.

.

.

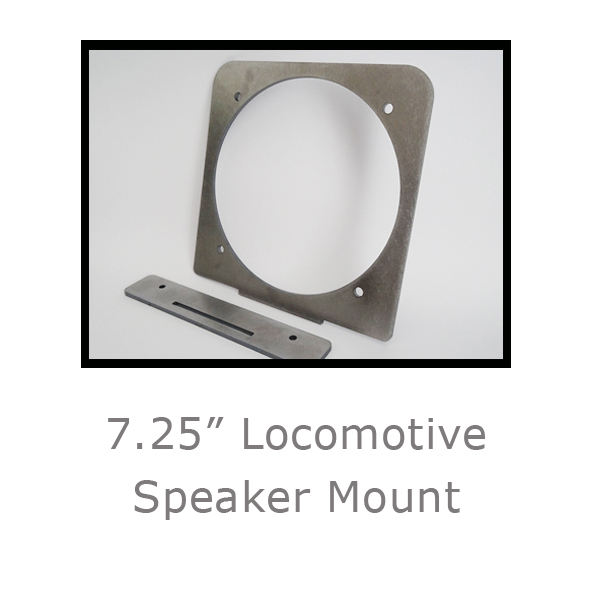

7.25in Locomotive Speaker Mount

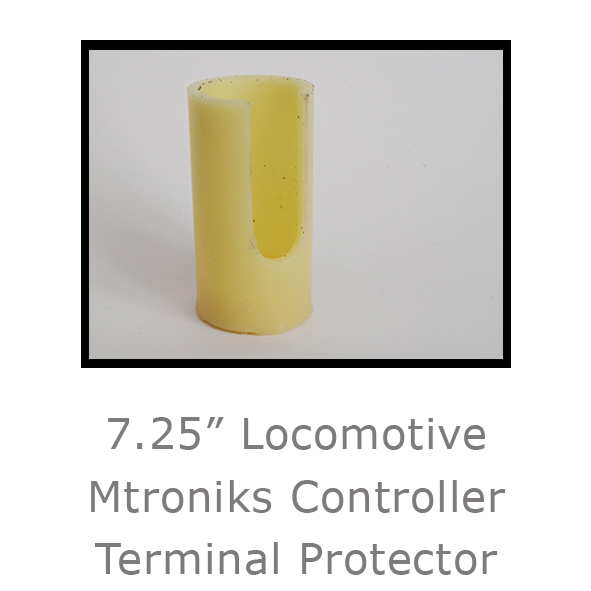

7.25in Locomotive Mtronics Controller Terminal Protector

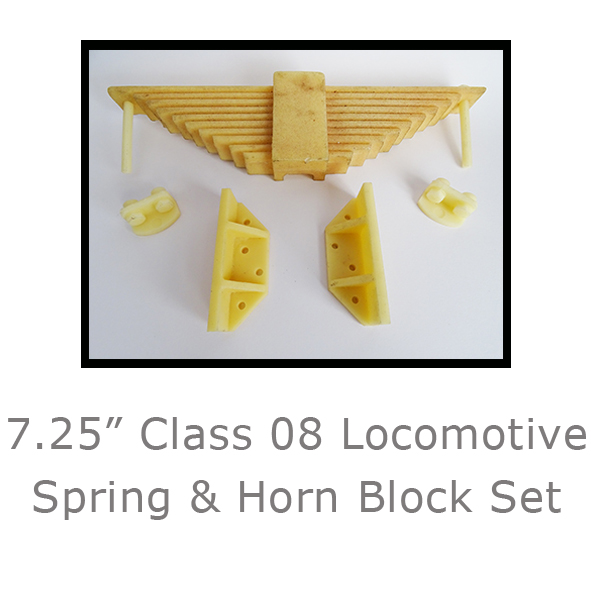

7.25in 08 Loco Spring & Horn Block Set
Lamp Ironlost wax cast

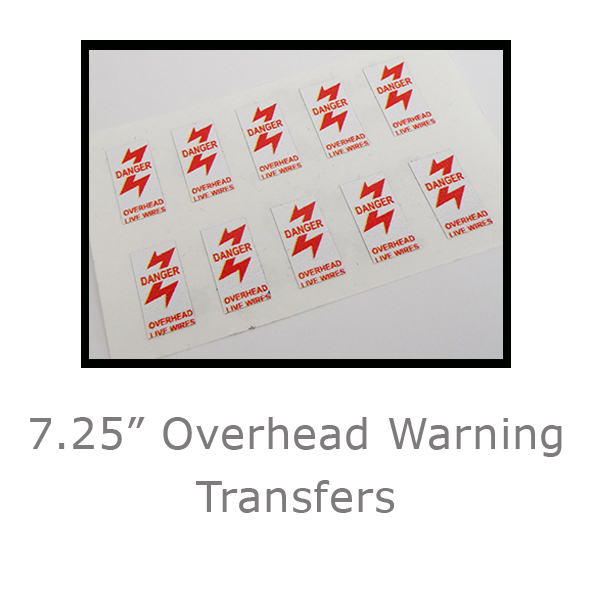

7.25in Overhead Warning transfers

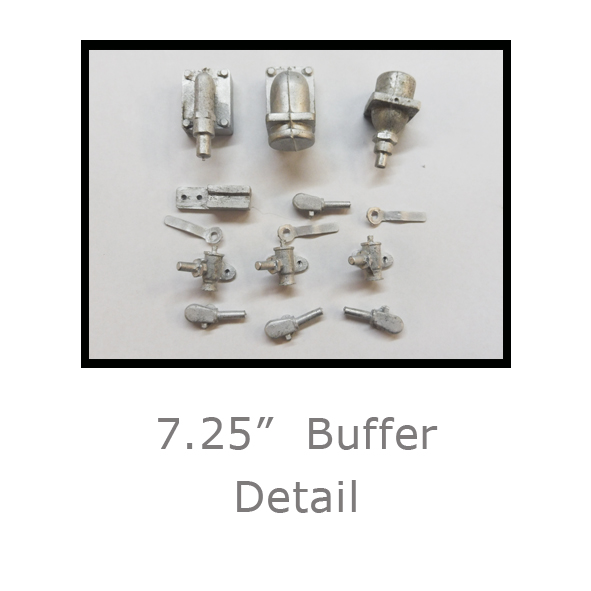

7.25in Buffer detail

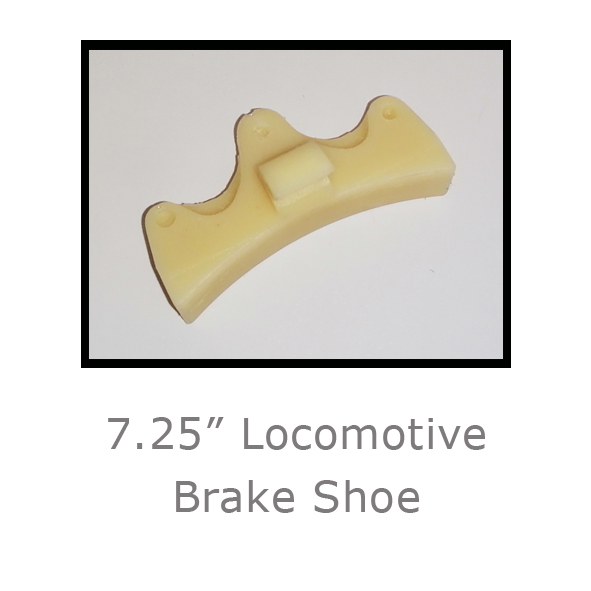

7.25in Locomotive Brake Shoe

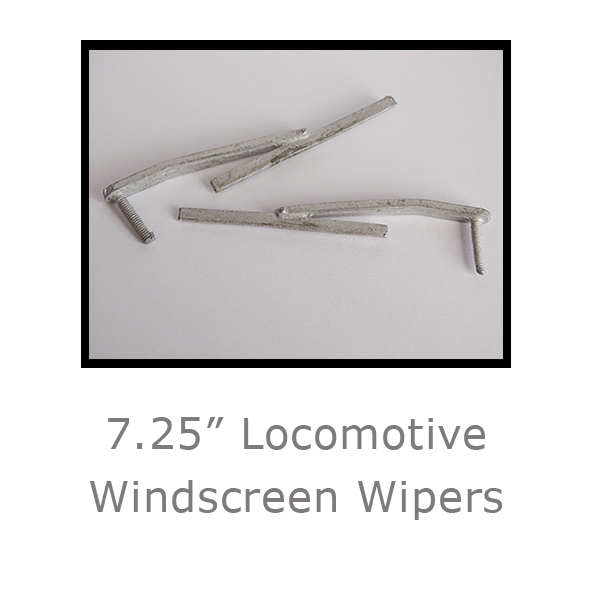

7.25in Locomotive Windscreen Wipers

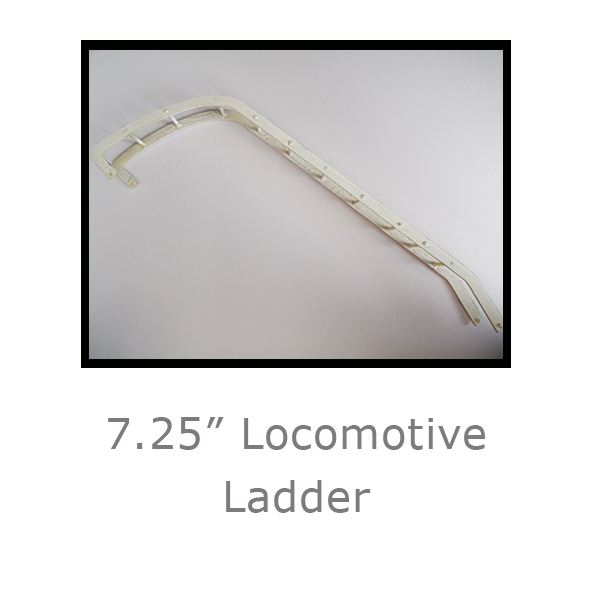

7.25in Locomotive Ladder

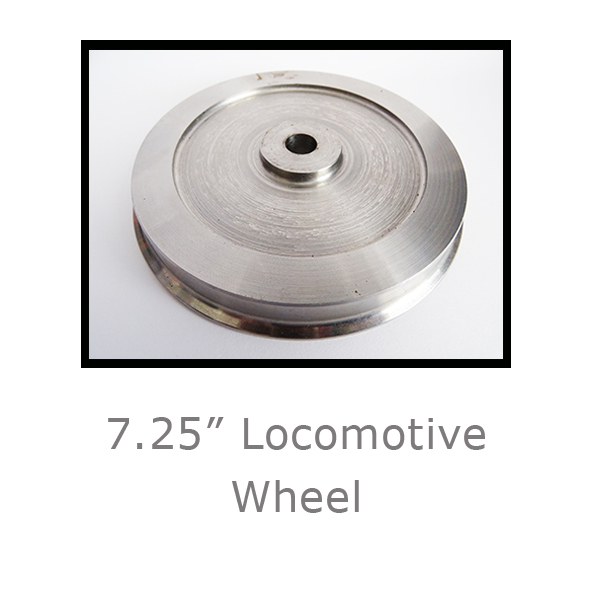

7.25in Locomotive Wheel

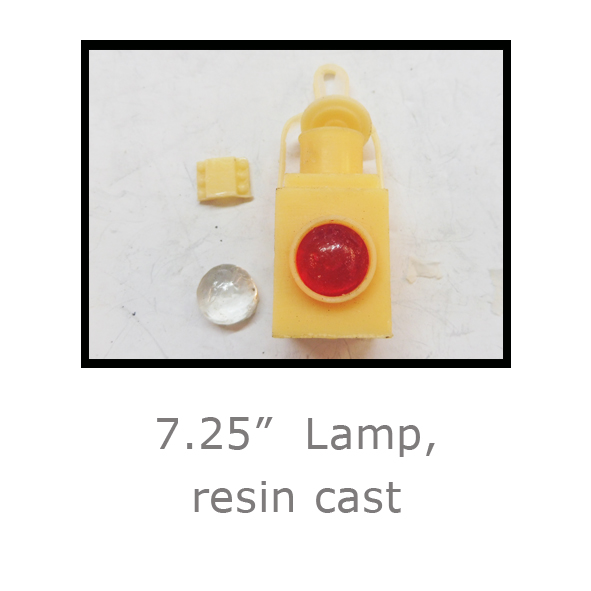

7.25in Lamp, resin cast

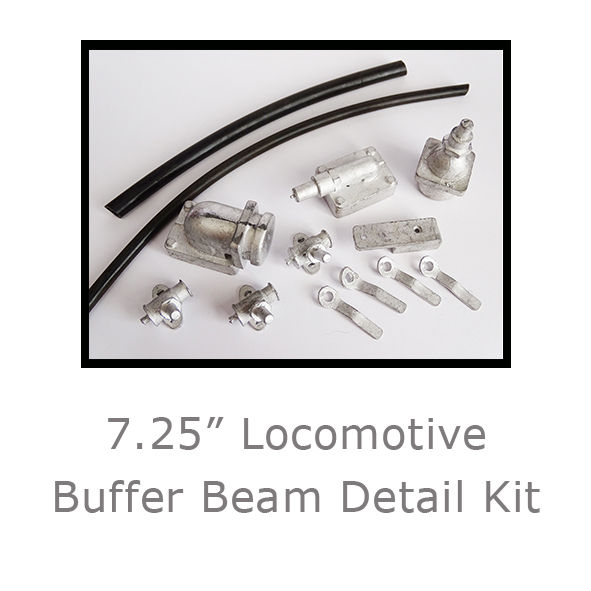

7.25in Locomotive Buffer Beam Detail Kit

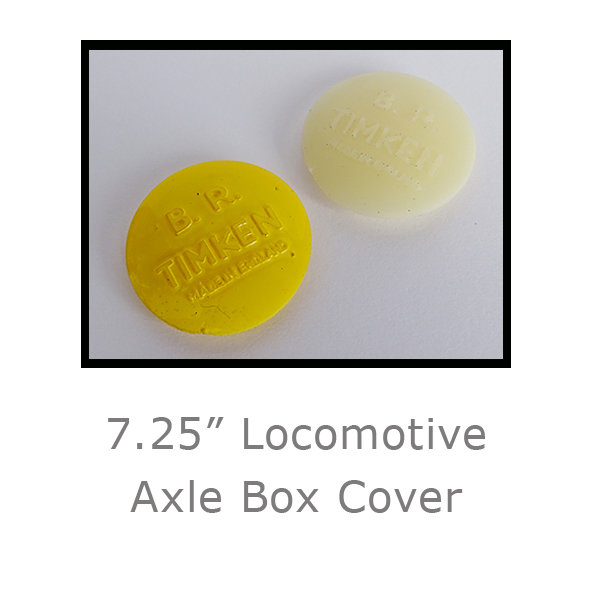

7.25in Locomotive Axle Box Cover

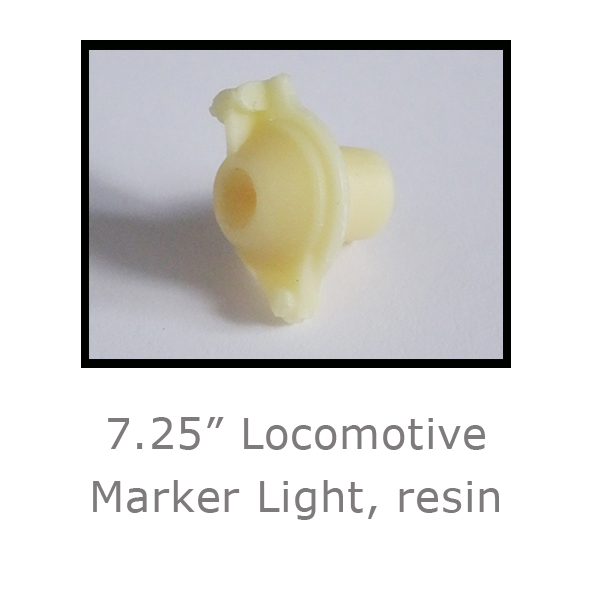

7.25in Locomotive Marker Light

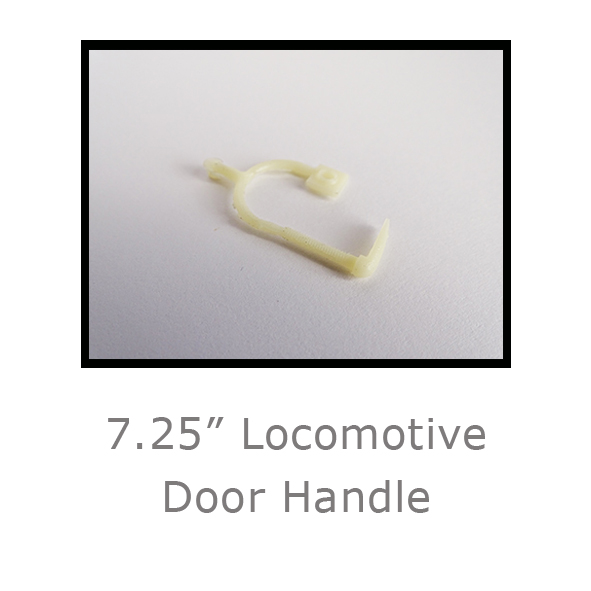

7.25in Locomotive Door Handle

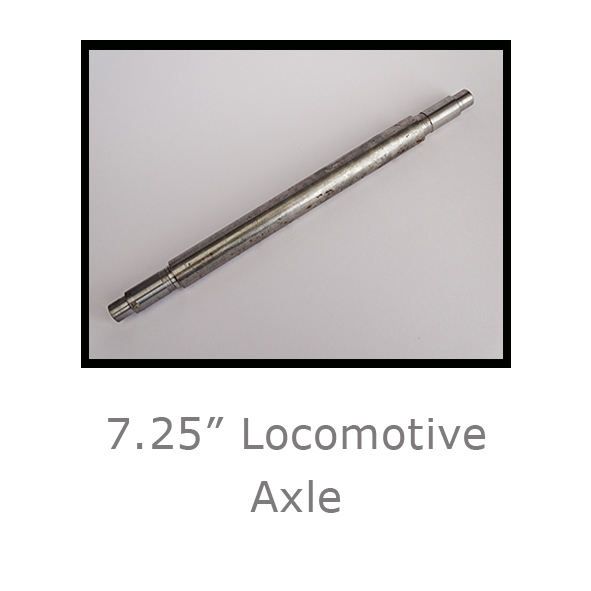

7.25in Locomotive Axle

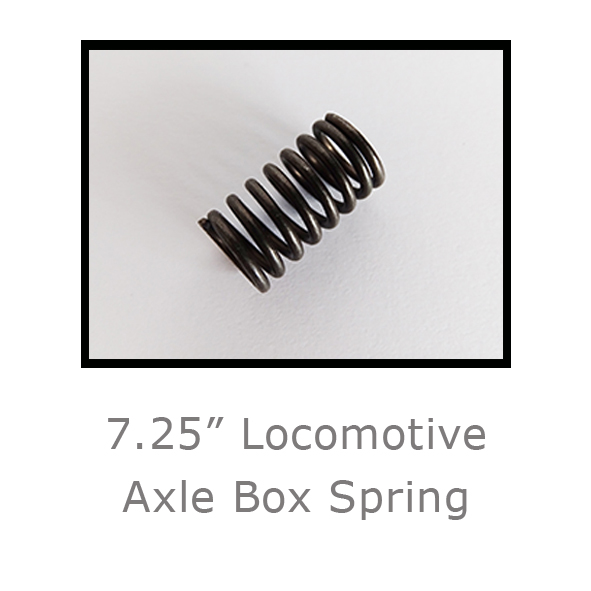

7.25in Locomotive Axle Box Spring

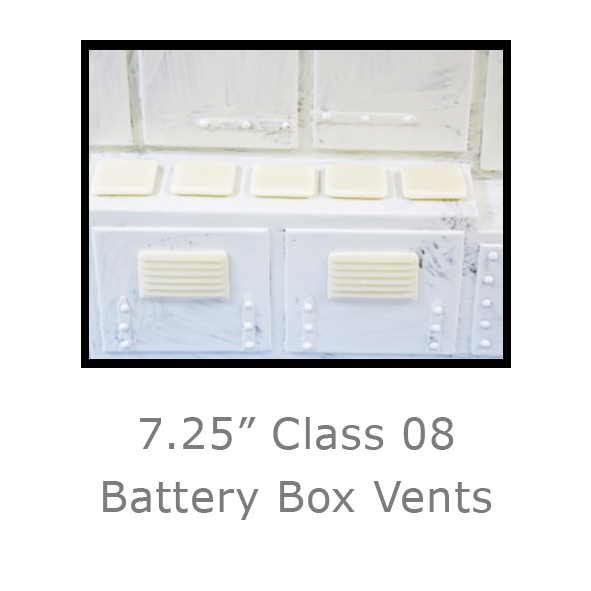

7.25in 08 Battery Box Vents

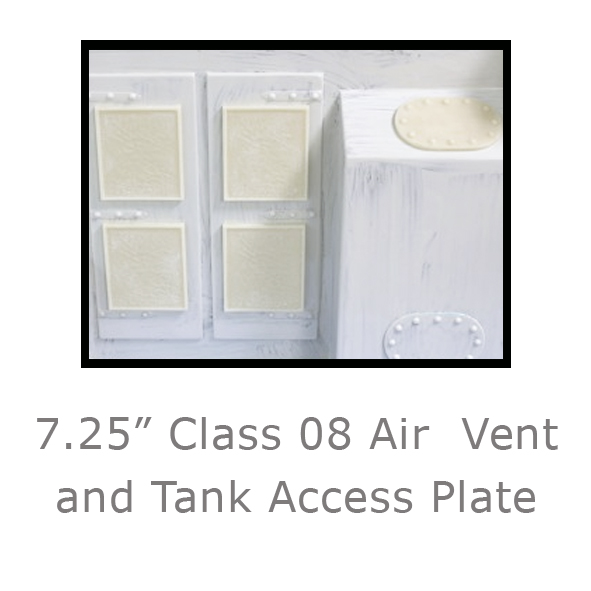

7.25in 08 Air Vent Tank Access

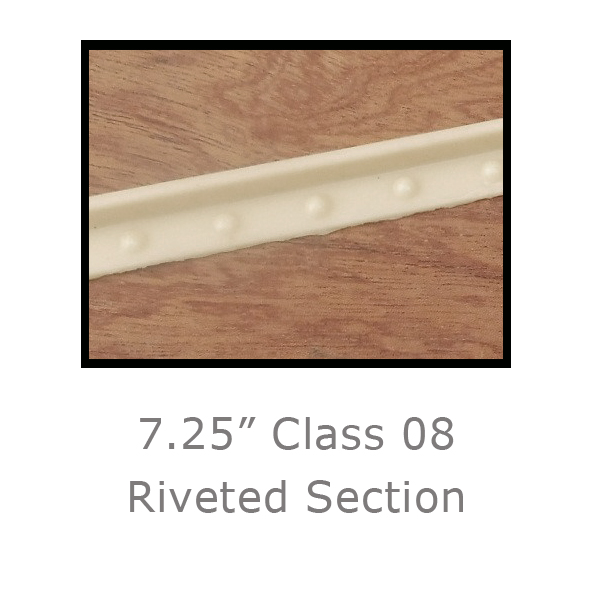

7.25 08 Riveted section

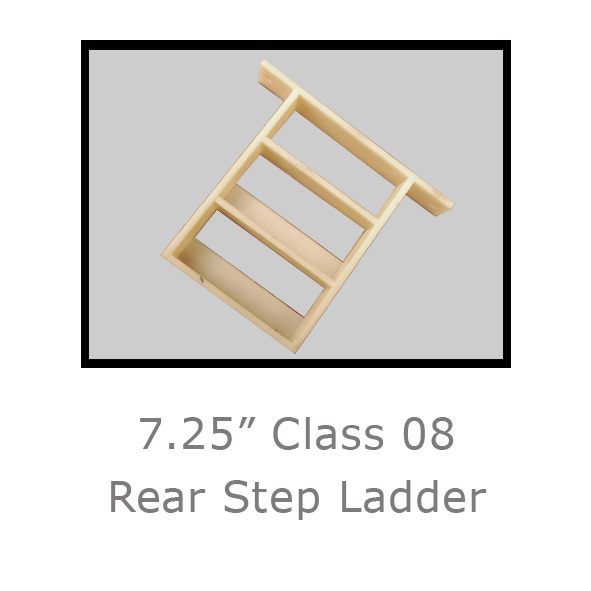

7.25 08 Rear Step Ladder

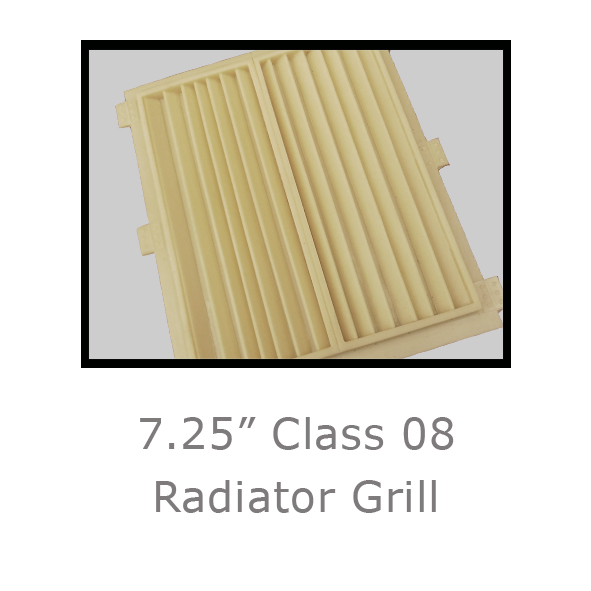

7.25 08 Radiator Grill
7.25 08 Front Steps

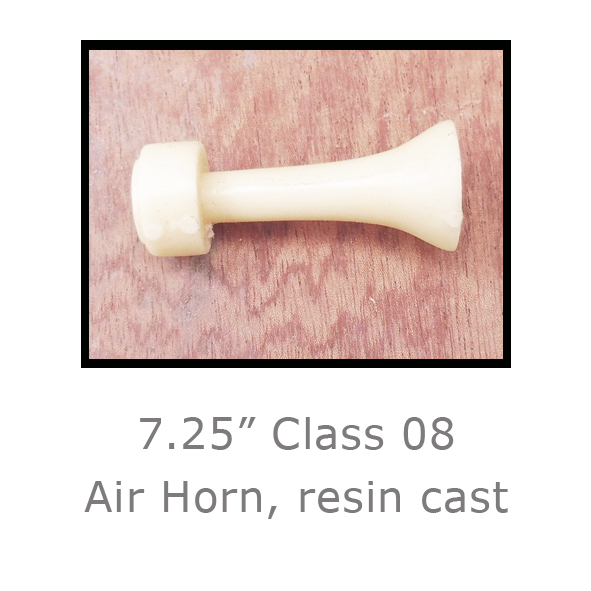

7.25 08 Air Horn resin

.

.

.

.

.
