Class 810a
Scroll Down
Prices Scroll

  • Class 08 10 Loco
  • Class 08 10 Loco 2

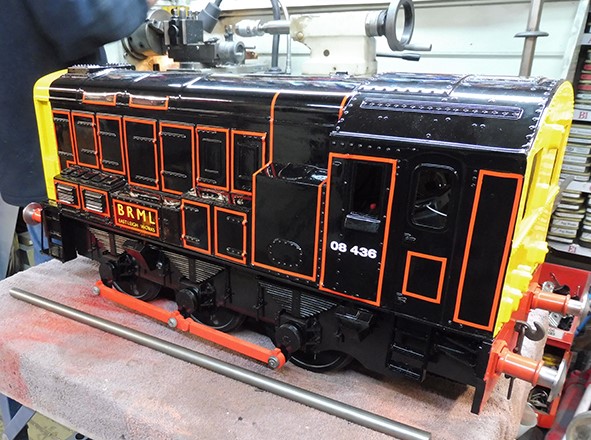

  • 5in 08 2020 a
  • 5in 08 2020 b
  • Class 08 10 P1040660
  • Class 08 10 P1040665
  • Class 08 10 P1040672
  • Class 08 10 P1040668
  • Class 08 10 P1040667

Available in kit form or ready to run with sound units

.

Also comes in two versions – spoked wheels or solid wheels.

.

The ready to run version includes an M-Troniks sound unit.

.

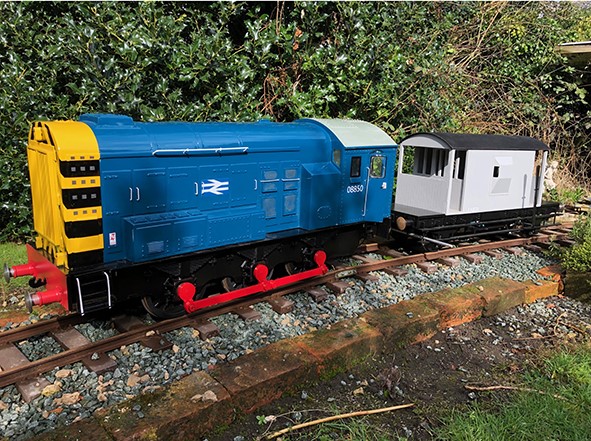

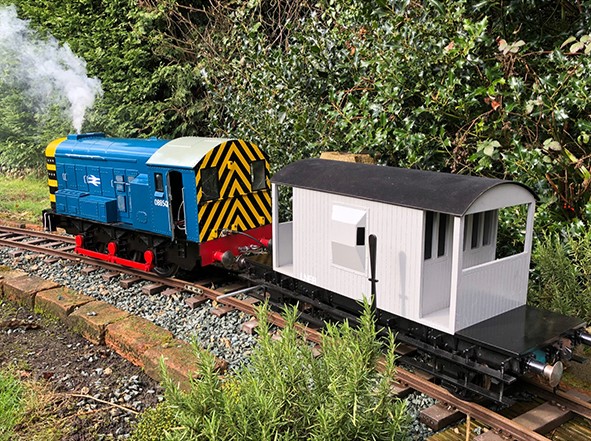

Also available in a 7.25″ gauge – click HERE

.

The locomotive consists of:

A highly detailed body shell in glass fibre with resin cast detail parts
Laser cut fully sprung chassis and side rods
Front sprung coupling clevis coupling to rear
Sprung
buffers
Steel axle boxes with ball races Running number of your choice
Resin detailing parts for horn blocks, leaf springs and spring carriers as well as steps and pins.

Front and rear steps are included in the price, as are sand boxes
The ready to run locomotive includes a M-Troniks controller and sound system
Basic livery painted as standard – please enquire about more complex liveries

.

The locomotive is driven by 3 150 watt traction motors traction motors, the drive is achieved by gear and sprocket

.

.

Specifications:

 Chassis Length – 810mm including buffers
Width – 225mm
Height – 140mm including wheels

.Body Moulding:

Length – 690mm

Width (cab) – 225mm

Height – 200mm



WEIGHT OF LOCOMOTIVE INCLUDING BODY – 28KILOS

.

Complete ready to run locomotive with spoked wheels and sound unit £2600.

Complete ready to run locomotive with solid wheels and sound unit £2450

Kit Form* – including controller, solid wheels, no sound unit £1650

Kit Form* – including controller, spoked finished wheels, no sound unit £1900

Kit Form* – including controller, raw cast spoked wheels, no sound unit £1650

.

.

* These kits are only suitable for people with model engineering skills as certain parts require machining *

.

.All locomotives are available in different liveries to those shown. Please ask!

We sell all of the components of our Locomotive kits separately so you can either build yourself from scratch or customise yourself as you go along

.

Listed below are many of the components we have available. Prices for each of the components can be found with the relevant locomotive in our price list, which can be found HERE

.

If you are looking for something specific that isn’t listed, or you can’t find the item on the price list, please give us a call!

.

Please contact us directly with any enquiries

.

.

.

.

.

.

5in Overhead Warning transfers
5in Locomotive Door Handle
5in Locomotive Rear Tie Buffer Beam
5in Locomotive Mtronics Controller Terminal Protector
5in Locomotive Speaker Mount
5in 08 Loco Spring Coupler Steps Horn set
5in 0810 Loco Sand Box
5in 0810 Loco Dummy Spring and Horn Blocks
5in Class 0810 Loco Rear Steps
5in Locomotive Driver painted
5in Lamp resin cast
5in Locomotive Driver unpainted
5in Drivers Seat
Lamp Ironlost wax cast
5in Locomotive Buffer Beam Detail Kit
5in Locomotive Windscreen Wipers
5in Locomotive 15 Tooth Gear
5in Locomotive Door Handle white metal
Coupling Plate Cover x
5in Locomotive Marker Light white metal
5in Vacuum Pipe fittings
5in Pipe Fittings

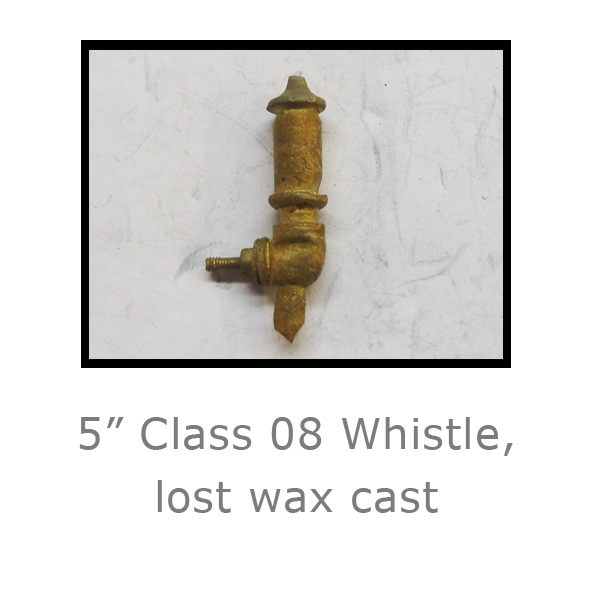

5in Class 208 whistle lost wax

.

.

.

v v v          WATCH OUR VIDEO BELOW          v v v

To see more videos of our products, visit out YouTube channel here >>> AP MODEL ENGINEERING
