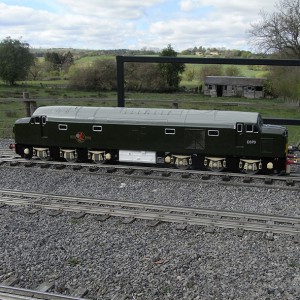

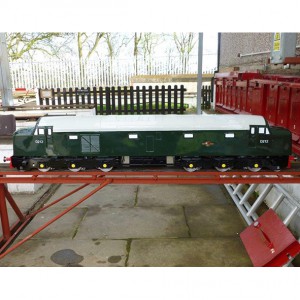

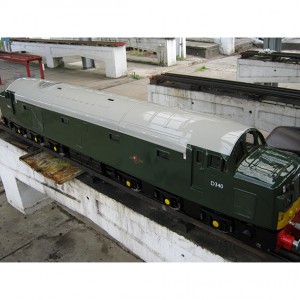

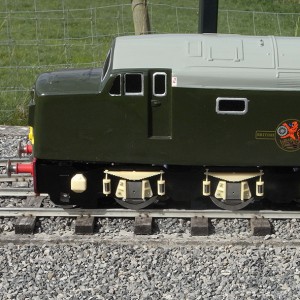

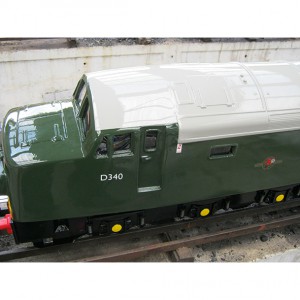

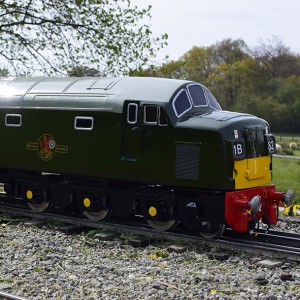

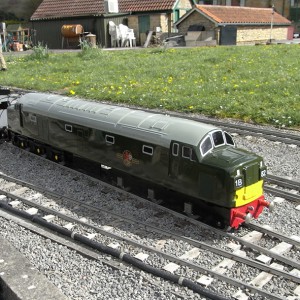

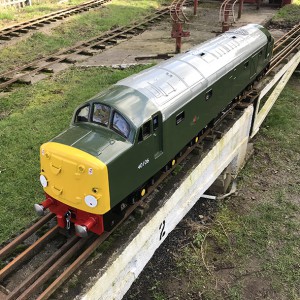

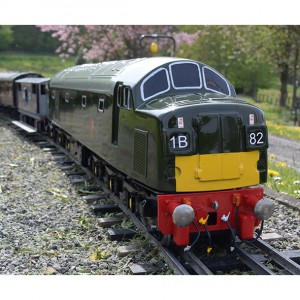

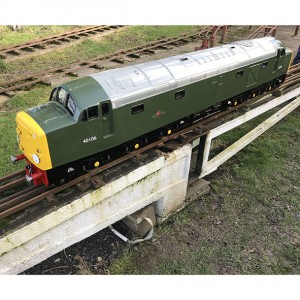

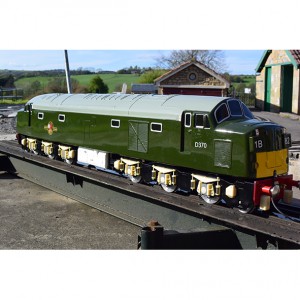

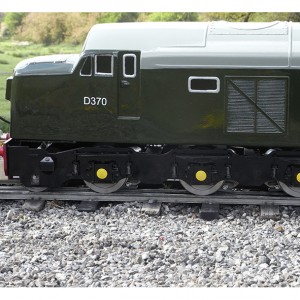

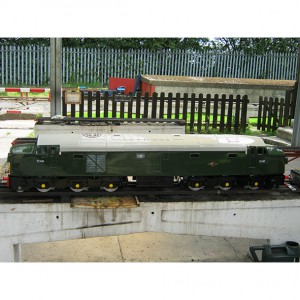

Our Class 40 locomotive comes in a 5” gauge.

.

Available in kit form or ready to run.

.

3 versions available:

split head code box with doors to front

Doors to front with no split head code

Block head code

.

The locomotive consists of:

One piece glass fibre moulding for the body
Laser cut chassis with dummy fuel tanks
Resin cast horns, springs and sand boxes
Motive power is via 6 traction motors with 150 watt of power each
Motor axle hung gear drive
Sprung steel axle boxes and buffers
Coupling to front with chain clevis to rear
The ready to run locomotive comes complete with an Mtroniks controller and sound unit.
.

* Please Note: Kits DO NOT include batteries or paint *

Specifications:

Length – 76″
Width – 11″
Height – 16″

Total weight – 75kg

.

.

All locomotives are available in different liveries to those shown. Please ask!

We sell all of the components of our Locomotive kits separately so you can either build yourself from scratch or customise yourself as you go along

.

Listed below are many of the components we have available. Prices for each of the components can be found with the relevant locomotive in our price list, which can be found HERE

.

If you are looking for something specific that isn’t listed, or you can’t find the item on the price list, please give us a call!

.

Please contact us directly with any enquiries

.

.

.

5in Locomotive Air Horn
5in Locomotive Axle Box
5in Locomotive Axle Box Cover
5in Locomotive 80 Tooth gear
5in Locomotive Wheel
5in Locomotive Axle Box Spring
5in Locomotive Mtronics Controller Terminal Protector
5in Locomotive Speaker Mount
5in Locomotive Door Handle
5in Locomotive Oilite Bush

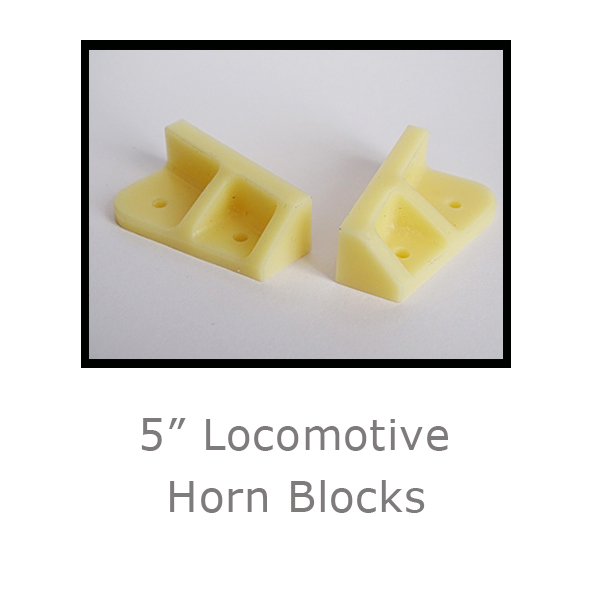

5in 40 Loco Horn Blocks_

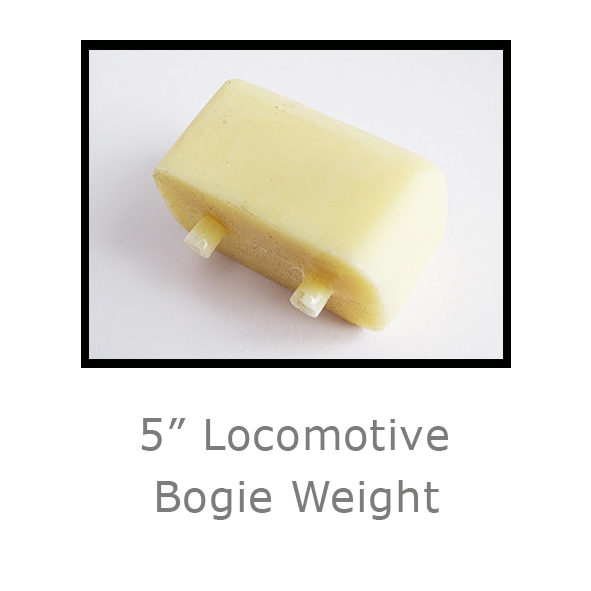

5in Class 40 Loco Bogie Weight_
5in 37 40 Split Head Code Extension_

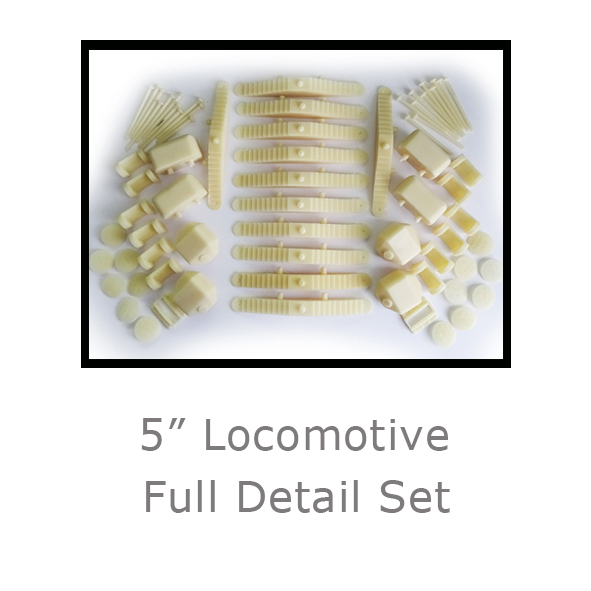

5in 40 Full Detail Set_

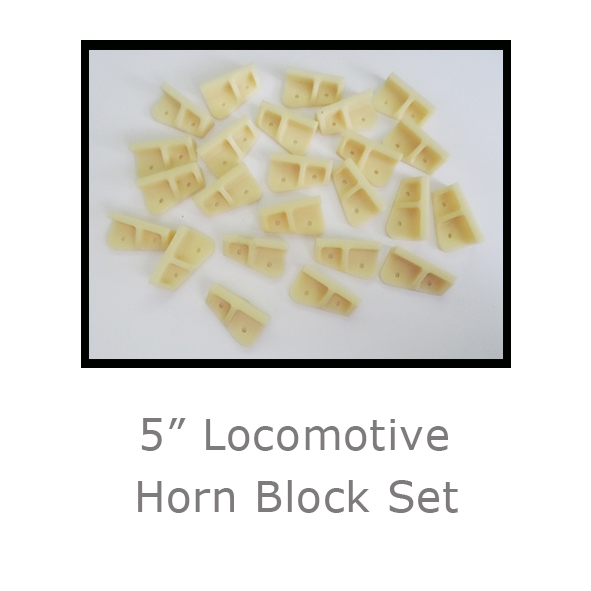

5in 40 Horn Block Set_

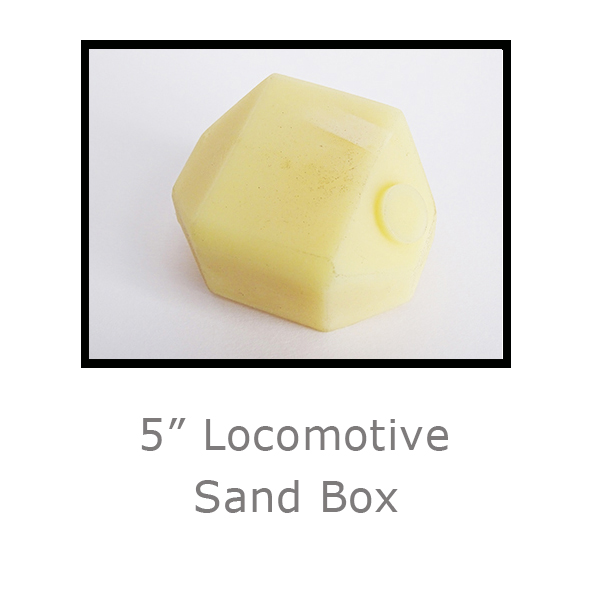

5in 40 Loco Sand Box_
5in Overhead Warning transfers
5in Locomotive Driver painted
5in Locomotive Driver unpainted
5in Drivers Seat
3d Printed Horn Grill
Marker Light white metal
Lamp Ironlost wax cast
5in Locomotive Buffer Beam Detail Kit
5in Locomotive 15 Tooth Gear

.

.

.

5in Locomotive Marker Light
5in Locomotive Axle
5in 37 40 Horn Grill Brass_
5in Locomotive Door Handle white metal
Coupling Plate Cover x
5in VaBrake Pipes
5in Vacuum Pipe fittings
5in Vacuum Pipe clips
5in Pipe Fittings
5in Locomotive Windscreen Wipers
5in Lamp resin cast
5in Axle Box cover Sprue
5in Axle Box cover bolt on

.

.

.
